Xbox 360 Laptop
September
10th, 2006
What a fitting news item for the 6 year anniversary
of my site. Yes, it's been 6 whole years since the first
incarnation of this site limped onto Geocities and
shocked the world with a -gasp- portable Atari 2600.
Shortly thereafter I was on the Gamespy network, then in
2004 I bought a domain of my own. It's been a fun ride
and now, for your viewing pleasure, I present the Xbox
360 Laptop!

Ben Heckendorn's Custom Xbox 360 Laptop
I guess I would say I don't "mod" systems so much as
completely rebuild them. This is a perfect example as
everything in the Xbox 360 has been taken apart and
reassembled, with LCD screen, in laptop form inside a
custom case. Here are the specs:
1) Uses a 17" wide (diagonal) 1280x720
progressive-scan LCD VGA monitor (for HD-level
resolutions) Thus you can actually read the text in Dead
Rising.
2) Water-cooled with custom-built radiator. Allows
for a slimmer main body versus the mammoth heat sinks in
a stock 360.
3) Built-in keyboard and Wi-Fi.
4) USB hub allows original number of 3 USB ports for
user.
5) All-aluminum case, except for plastic keyboard /
ring of light / screen control area.
6) Uses single customized "expanded" power supply
brick for both screen and Xbox 360.
7) Breakout ports on back allow hookup to component
TV, VGA monitor, sound system (analog or TOSlink) and
even crummy composite video.
8) Size: 16.75" x 10.75" x 2.8" Weight: 14
pounds (with water loaded)

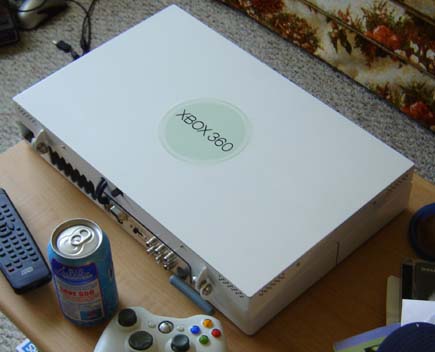

A fine "coffee table" game system.
Originally I didn't think this project would be so
tricky but I was quite wrong, it became the most
monstrously difficult one since I've been into this "portablization"
thing. Oh well. At least now I know how to build it.

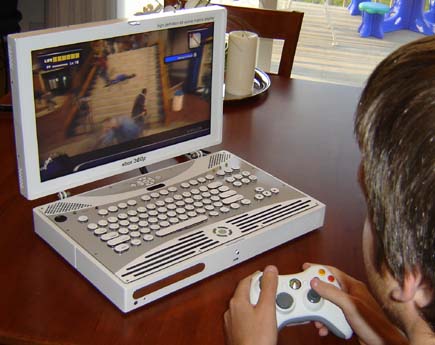

Zombie killin' fun!
Click on the links below to read the whole
step-by-step story for the creation of this unit (good
way to waste a lunch hour) or click "Photos" to simply
see, well, more photos of the thing. Enjoy!
Article Links:
XBox 360
Laptop "Making Of" Story
Xbox 360
Laptop Finished Product Photos Page Includes videos
and a full-resolution photo pack. A final note - this
was a commissioned job so the unit has already been sold
and is thus not for sale. Those interested in persuading
me to build another are free to
email and
ask, but beware of sticker shock. You could always
buy my book
and become a modder yourself! Sub-final note to answer
some FAQ's: The unit cost about $1200 to build in
materials and CNC machine time. That's not including
labor and design. Also since the software/firmware was
not modified it is fine to use on Xbox Live (which I
have) |
