Atari 2600 Junior Single Chip Portable

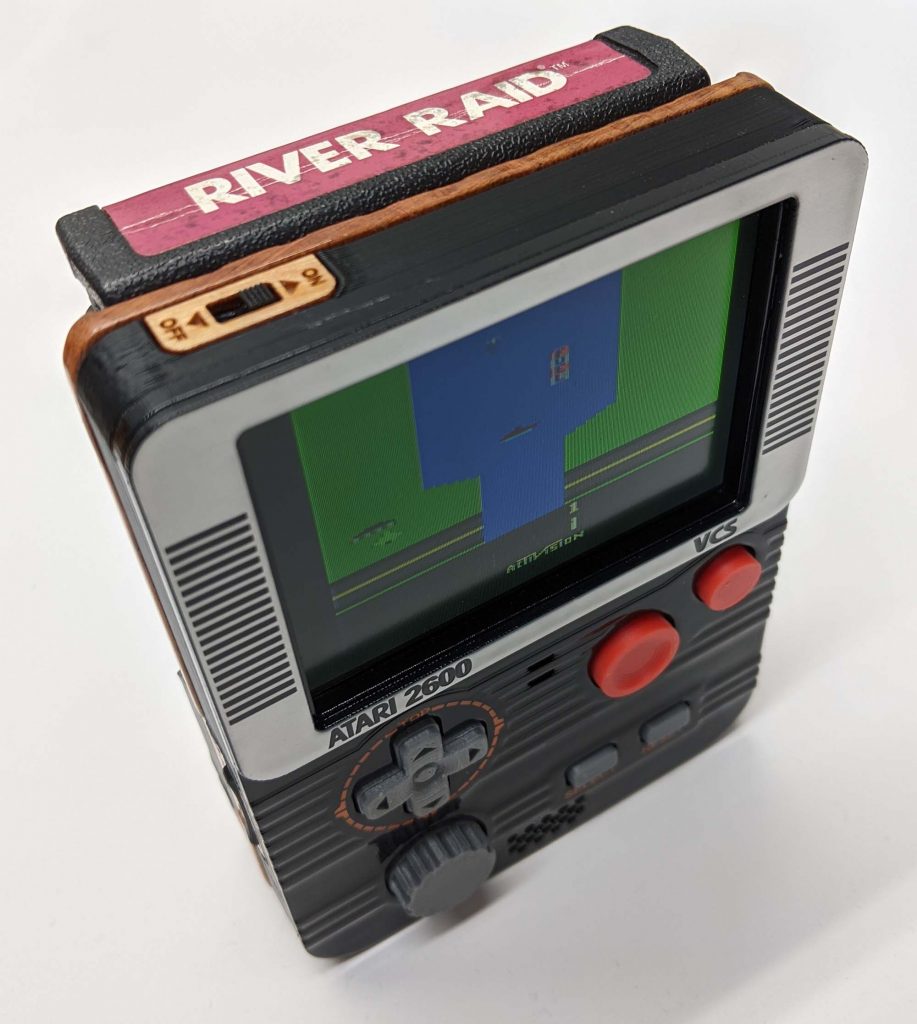

Here are photos of the Atari 2600 Junior single-chip portable, both complete and in disassembled form.

The unit is 5.1″ x 3.7″ x 1.375″ in size and weighs 11 oz with cartridge installed.

Click on photos for high-res versions.

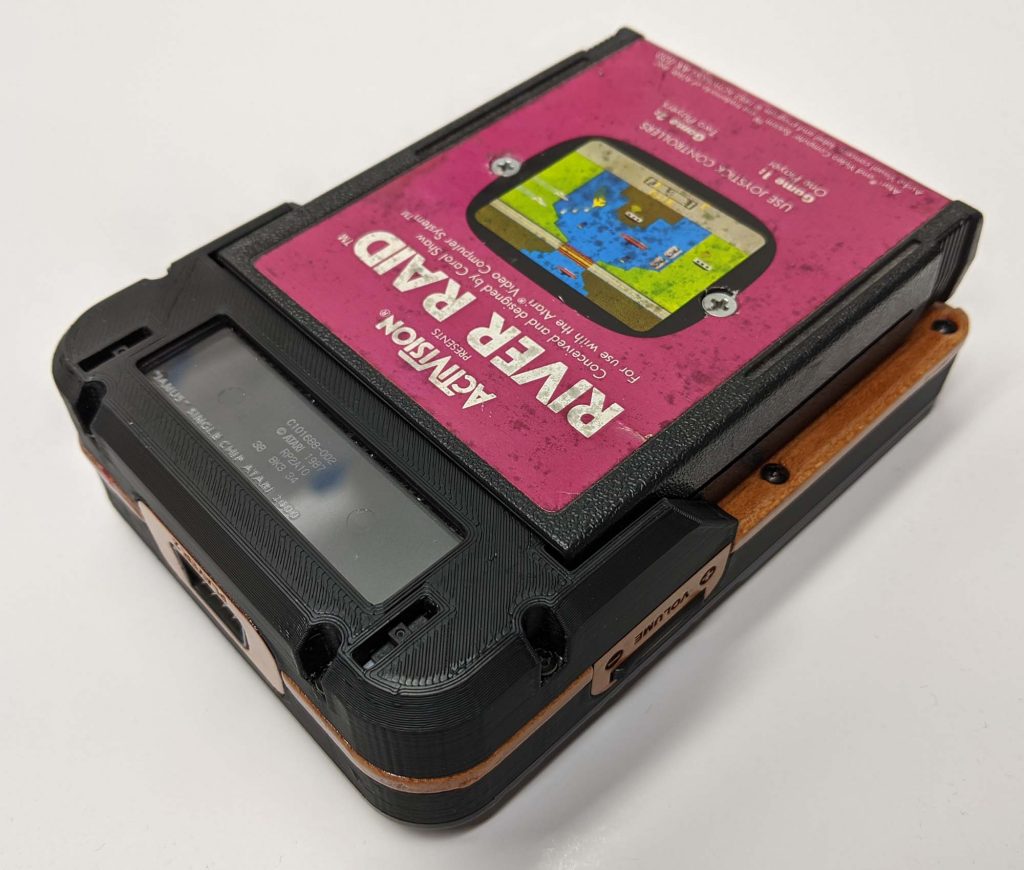

Rear of the unit, cartridge load area
The window I insisted on having so you could see it’s indeed a single-chip “Janus” 2600 Junior.

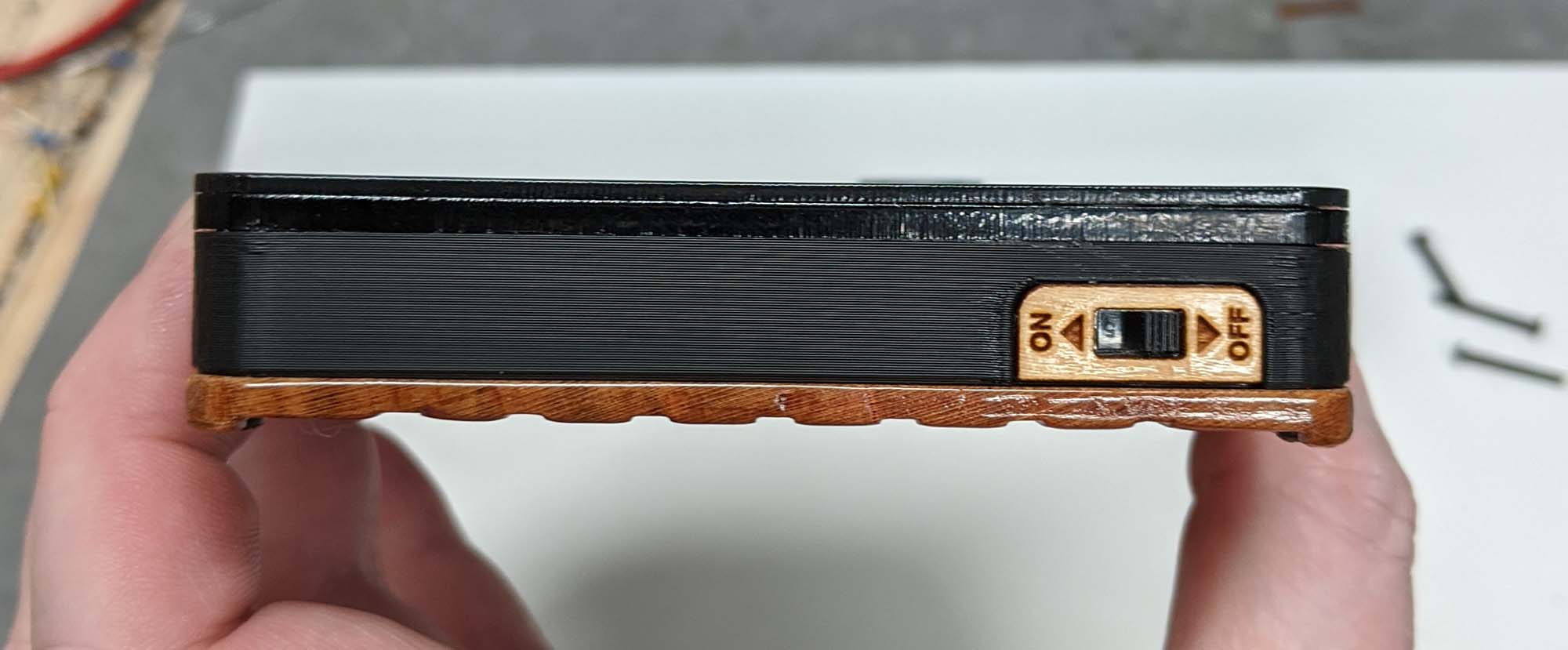

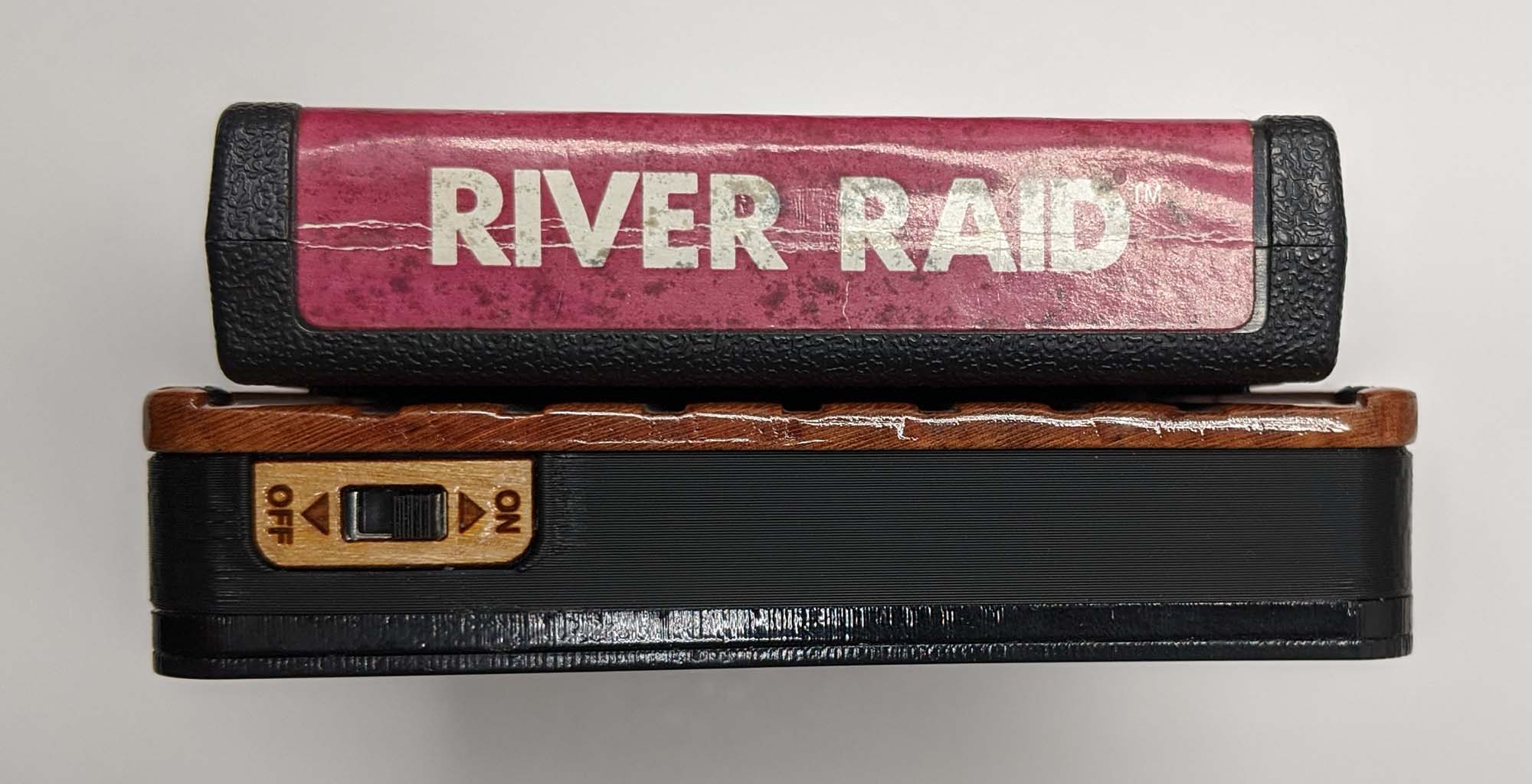

Top down view showing power switch in classic “Game Boy” spot

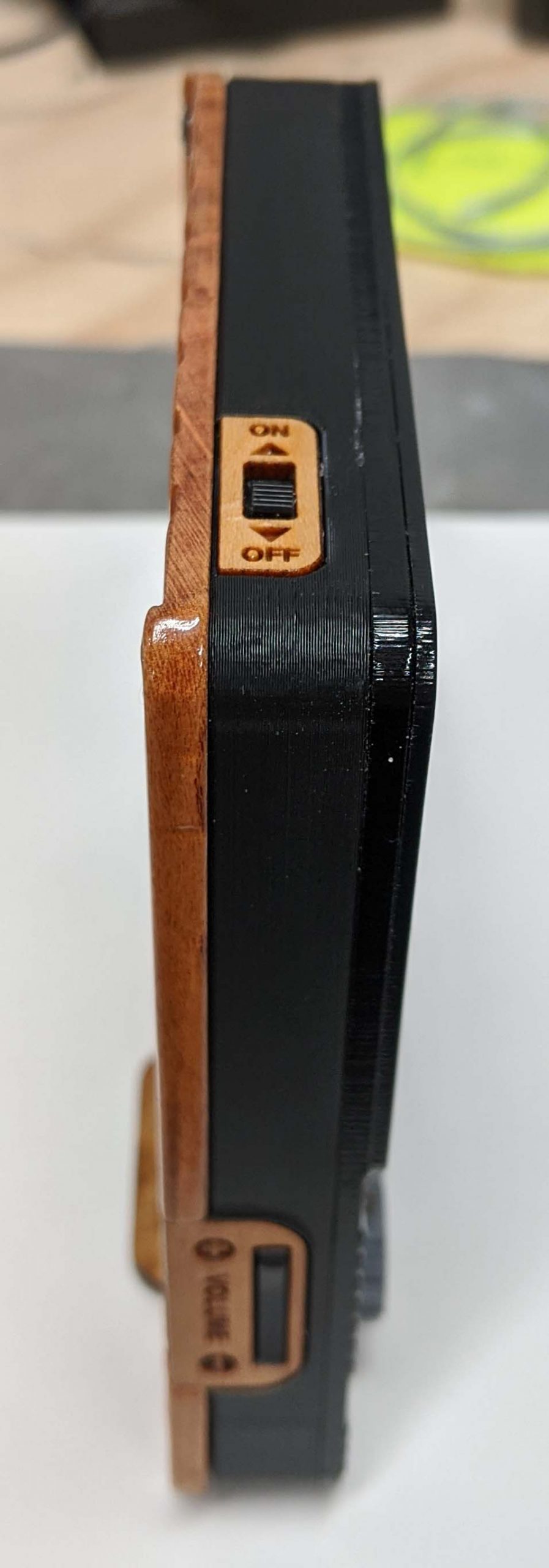

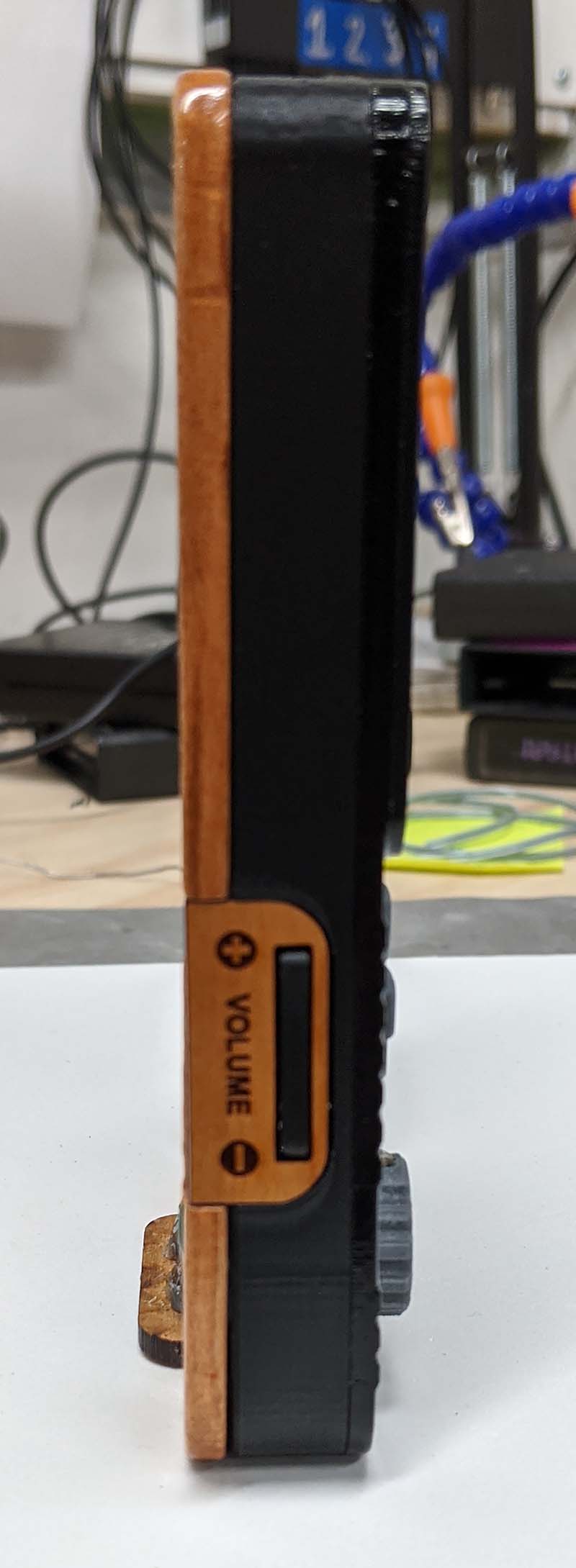

Side view showing the cell phone style “volume rocker”

Detail showing the interconnects between the 2 halves of the unit

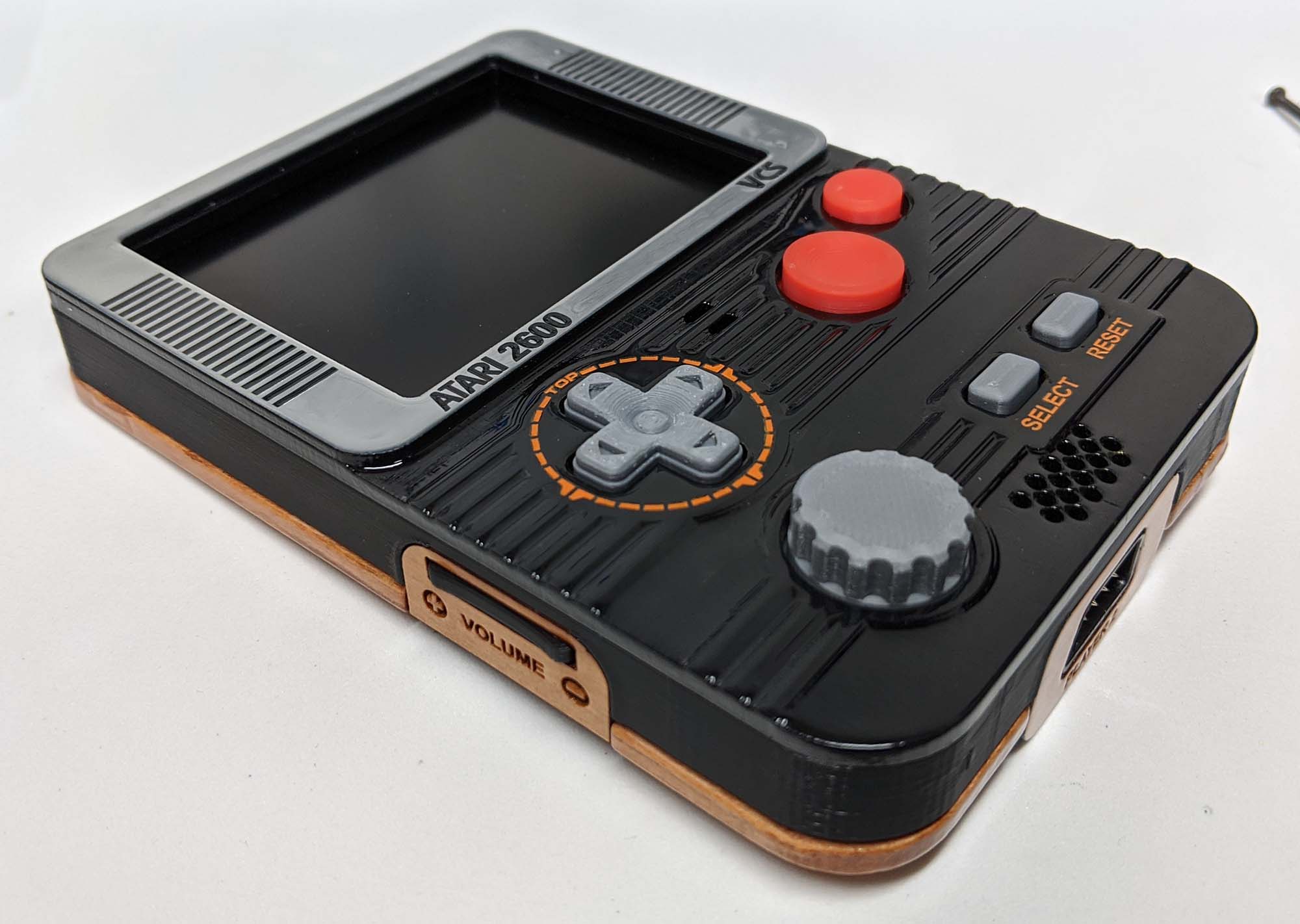

Front half of unit without cartridge logic board attached

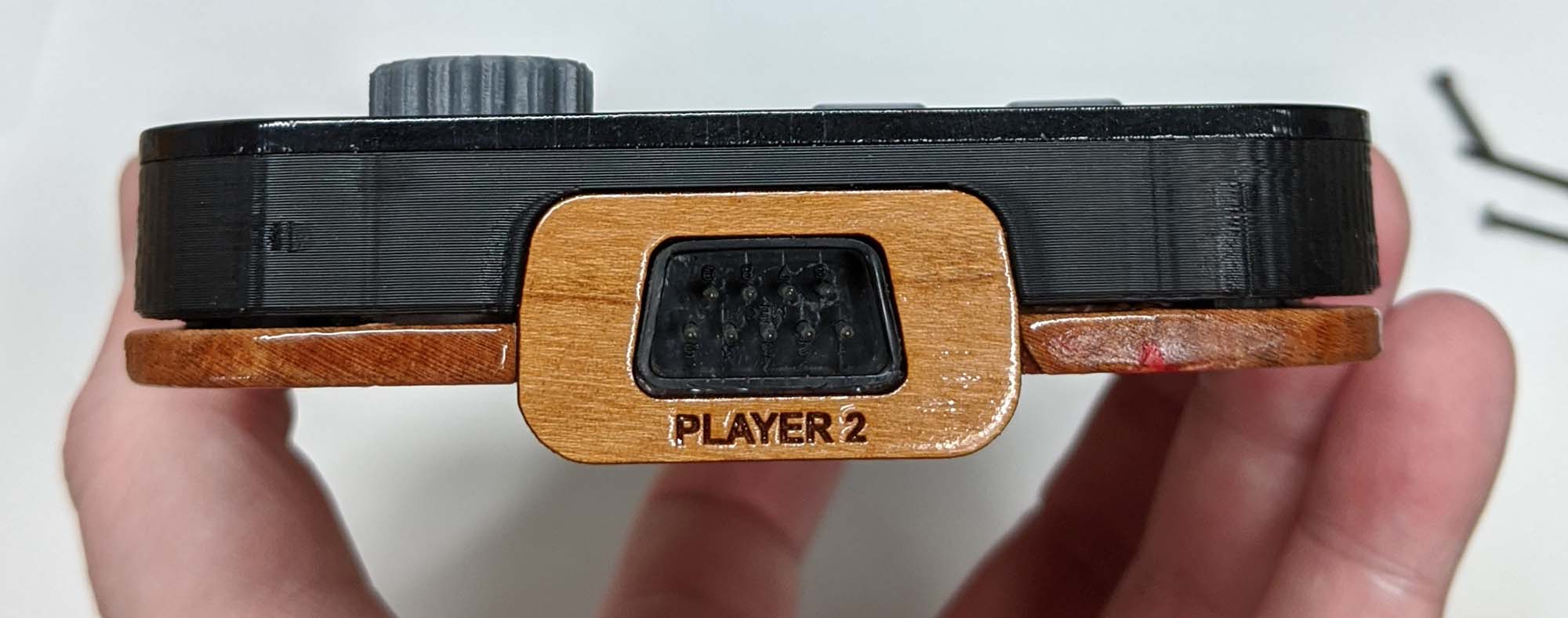

Side of unit without cartridge logic board attached

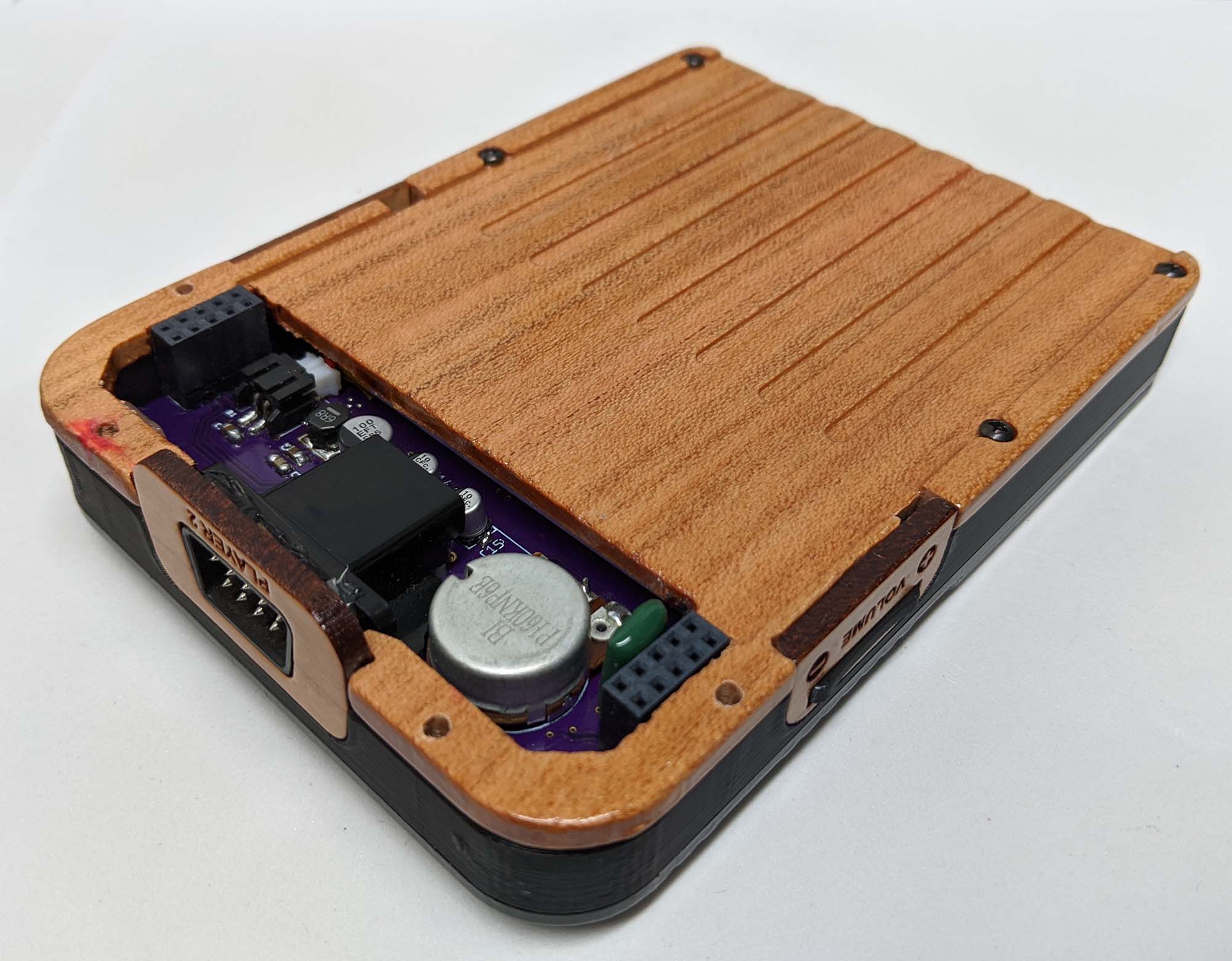

Bottom of unit without cartridge logic board attached

Still reminds me of a bowling alley for some reason

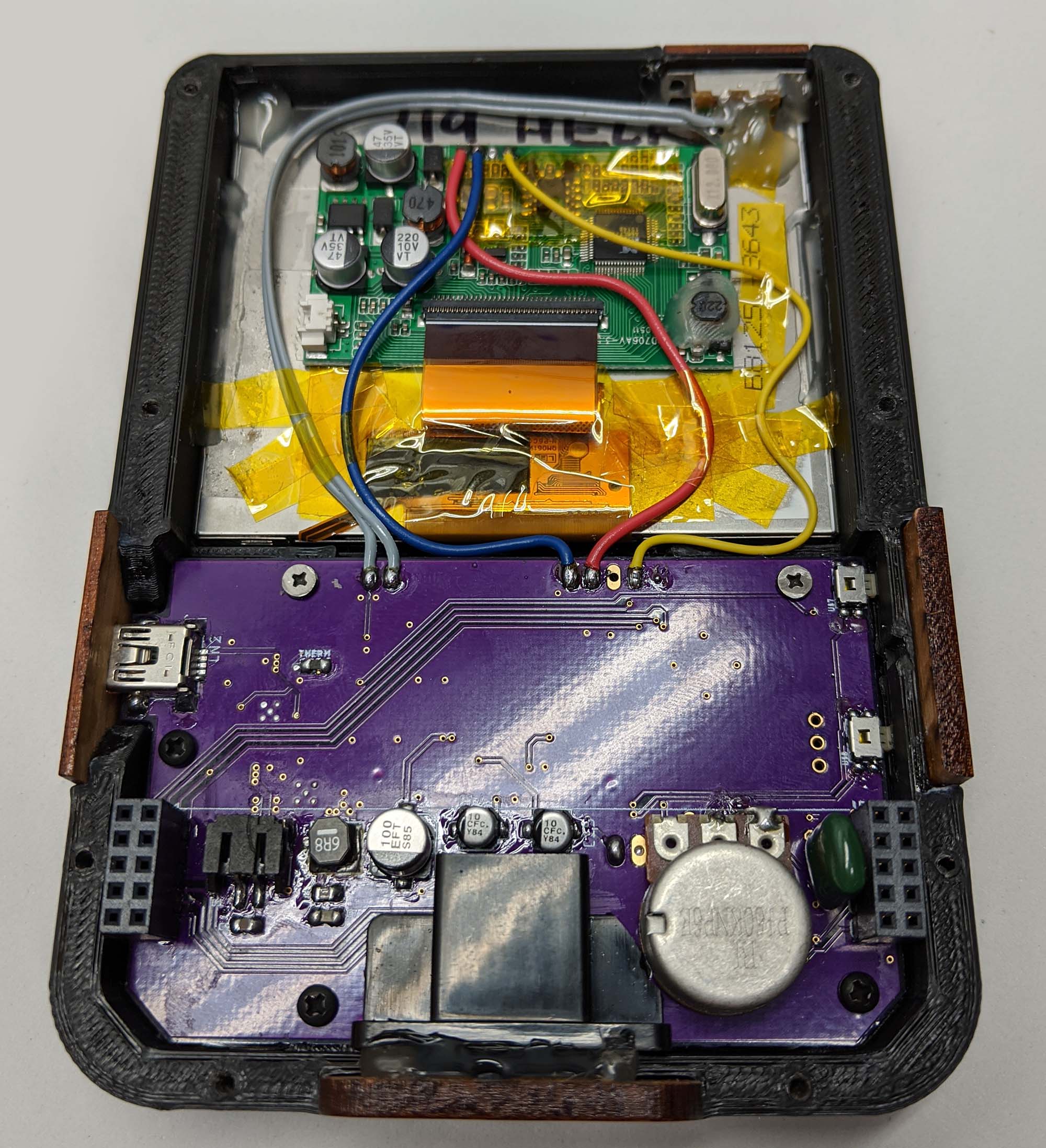

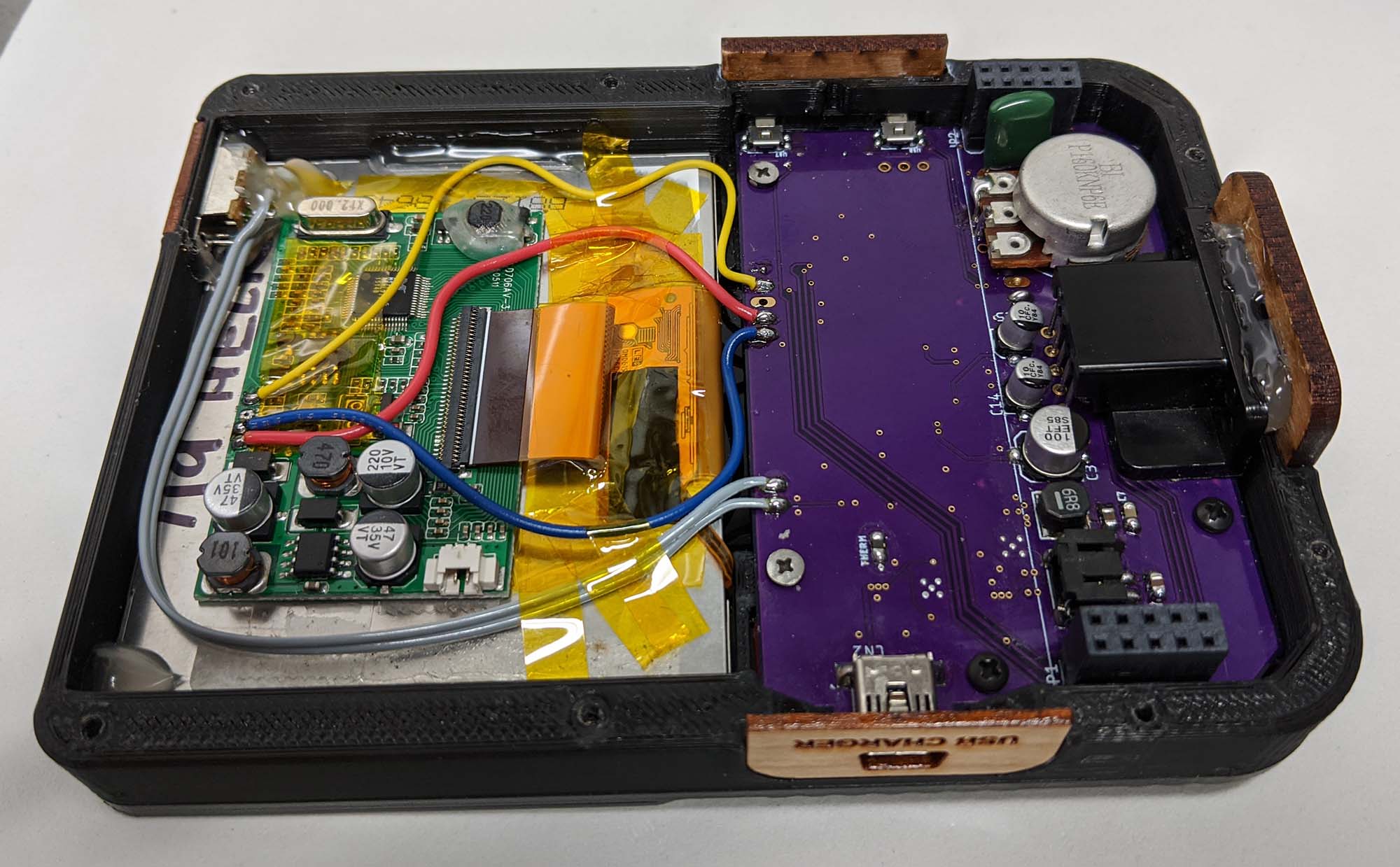

Inside the front half of the unit, sans battery

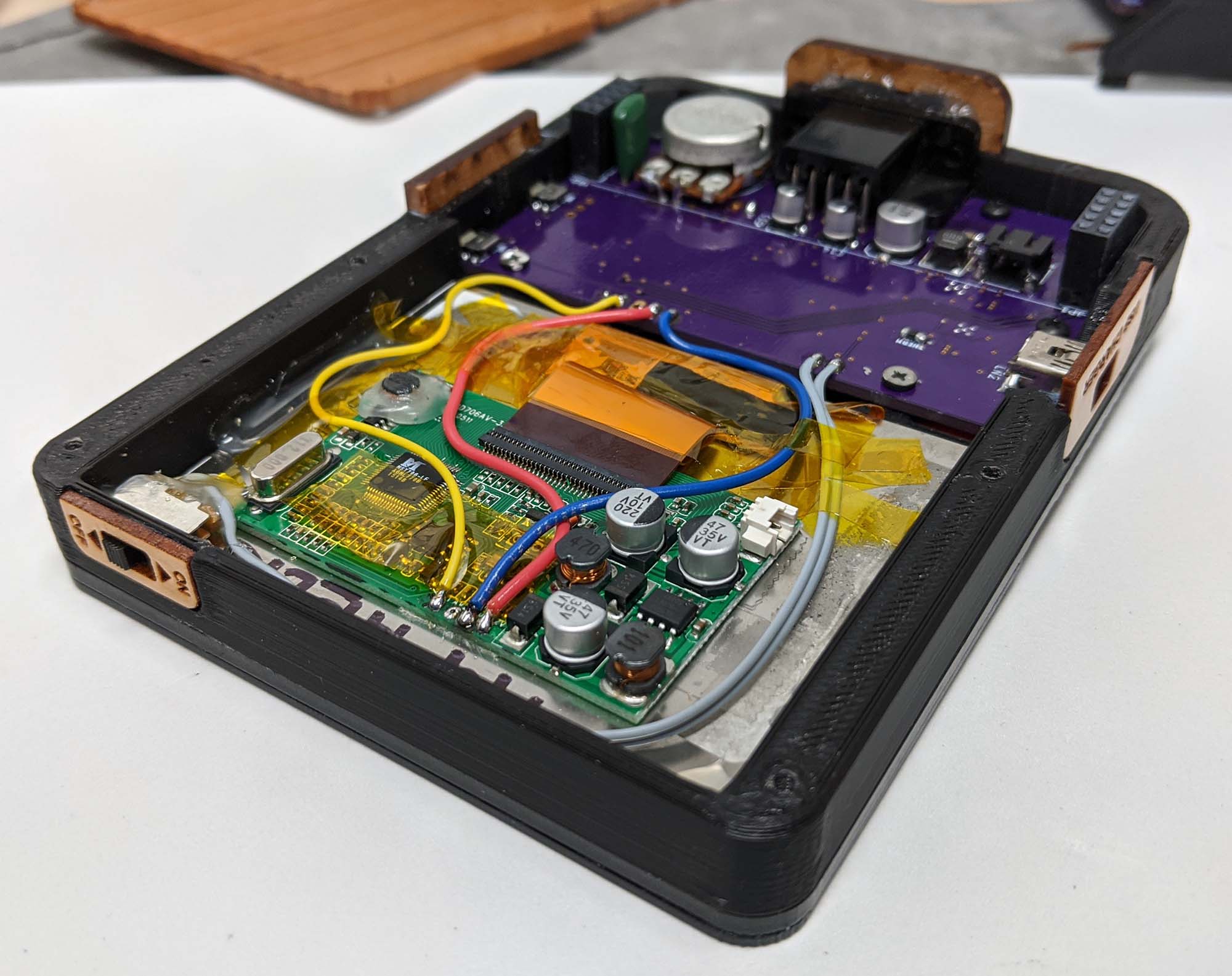

Detail of LCD wiring

Watch the Making-Of video here:
